Pallet Sleeve box

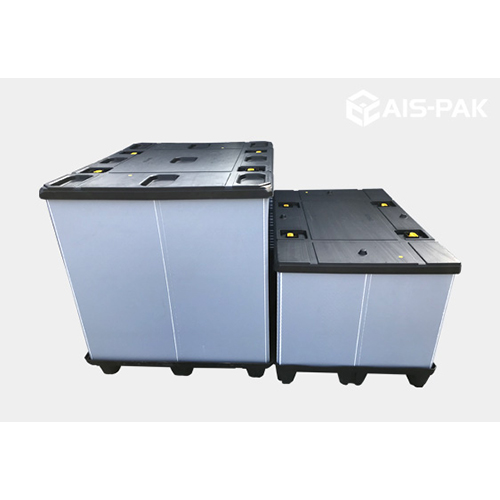

Pallet sleeve box is a versatile ‘sleeve pack’ system consisted of 3 parts: Lid, Sleeve and Pallet, designed to store and transport more products in less space. Pallet sleeve box can be completely collapsed when empty for efficient reverse logistics.
The twin-sheet thermoformed Lid and Pallet deliver high strength and load-carrying capacity without increasing the weight of the packaging. The reasonably designed walls and ribs provide larger internal dimensions and carrying capacity. Lid and Pallet are designed with nine feet base for anti-skid stable stacking and compatibility with all standard forklifts for easy handling.
The Sleeve, made of high strength, high payload polypropylene structural material referred to as “honeycomb”, with high physical durability and light-weight. It’s impressive impact and compressive strength due to air-lock technology keeps damage at bay during rough transportation.
| NO. | EXTERNAL DIMENSIONS (in mm) | INTERNAL DIMENSIONS (in mm) | PALLET WEIGHT (in kg) | LID WEIGHT (in kg) | INTERNAL HEIGHT (in mm) |
| 1 | 1470 x 1150 | 1400 x 1070 | 15 | 13 | T.H.-200 |
| 2 | 1350 x 1150 | 1280 x 1070 | 14 | 12 | T.H.-190 |
| 3 | 1150 x 1150 | 1105 x 1105 | 10.5 | 8.5 | T.H.-170 |
| 4 | 1100 x 1100 | 1055 x 1055 | 10 | 8 | T.H.-170 |
| 5 | 1150 x 985 | 1106 x 940 | 10 | 8 | T.H.-170 |
| 6 | 1200 x 1000 | 1140 x 950 | 10 | 8 | T.H.-170 |
| 7 | 1200 x 800 | 1160 x 760 | 8.5 | 7.5 | T.H.-170 |
| 8 | 1220 x 1150 | 1160 x 1080 | 12 | 10 | T.H.-200 |
| 9 | 1600 x 1150 | 1540 x 1080 | 19 | 14 | T.H.-200 |
| 10 | 2070 x 1150 | 2000 x 1080 | 26 | 16 | T.H.-200 |
| 11 | 800 x 600 | 760 x 560 | 6 | 5 | T.H.-200 |
| 12 | 1230 x 1030 | 1180 x 980 | 10 | 8 | T.H.-200 |
Advantages and key benefits
- 7:1 return ratio, less packaging 70% lighter than a traditional bulk container Easy to move and set-up
- Military-grade materials construction Lid and pallet nesting for efficiency Interlocking lid and pallet increase stability
- Sleeve, lid and pallet sold separately Replace only the part you need Lower maintenance cost and less waste
